PPR Pipe Drainage Pipe Tube Conduit Making Manufacturing Production
Line Plastic Pipe Extrusion Machinery
Features
1 This machine is mainly used for pipe production with PPR resin as
raw material
2. The design of slotted feeding barrel and barrier screw can
improve the plasticizing effect
3. The advantages of high extrusion volume, low melt temperature
and uniform temperature.
4. Barrier-type two-pole mixing is a special screw for one day, and
the slotting machine is simple.
5. Equipped with a new type of secondary shunt mold, it has the
characteristics of low temperature and low pressure extrusion:
water film sizing sleeve ensures high-speed production of pipes
6. The production line is controlled by PLC programming, with a
good man-machine interface
7. Marking line extrusion is optional to produce pipes with color
marking lines. The production line can change the mold to produce
PE pipes
8. The random copolymer polypropylene production line is mainly
used for the production of pipe production lines with PP-R resin as
raw materials, and also suitable for the production of pipes with
PP, PB, and PE resins as raw materials
| Diameter (mm) | 16-63 | 20-110 | 75-160 | 90-250 |
| Extruder | SJ45 | SJ60 | SJ75 | SJ75 |
| Motor power (KW) | AC30 | DC75 | DC110 | DC110 |
| Output(KG) | 60-100 | 100-150 | 250-300 | 250-300 |
| Maximum line speed (m/min) | 10 | 6 | 6 | 6 |
Equipment Composition and Characteristics

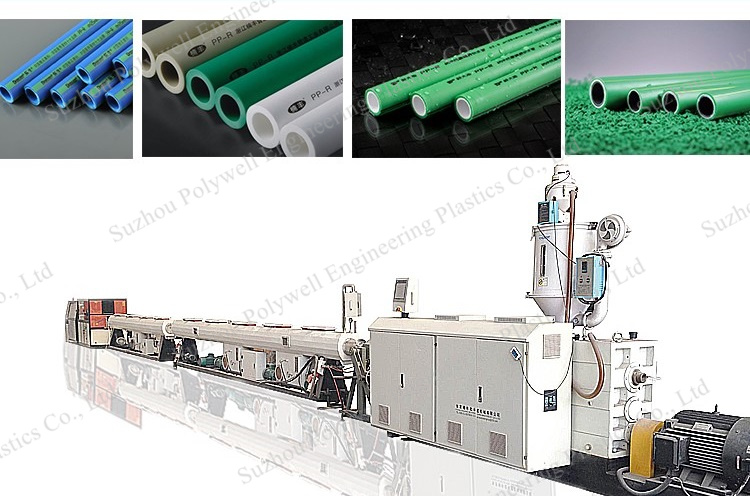

The PPR pipe production line produced by our company has advantages
such as unique structure, high degree of automation, convenient
operation, stable and reliable continuous production. The PPR pipe
products produced by this line have the advantages of heat
resistance, pressure resistance, heat preservation, energy saving,
long service life and economy. This product has become a good
material for home improvement water pipe renovation.

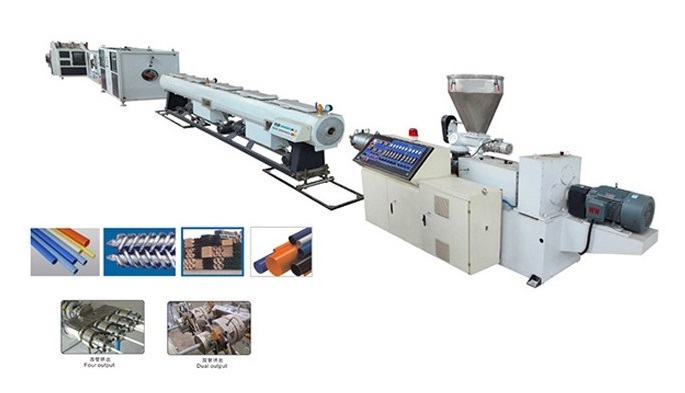

Production Flow Chart
①Raw material + color masterbatch → ②mixing → ③vacuum feeding →
④raw material drying → ⑤single-screw extruder → ⑥color line
extruder → ⑦screw die → ⑧sizing sleeve → ⑨vacuum spray calibrating
box → ⑩cooling water tank → ⑪jet printer → ⑫crawler traction
machine → ⑬fixed length cutting machine → ⑭stacking rack
Main Features of the Equipment
Extrusion Machine: The single-screw extruder adopts a slotted
barrel and a new type of BM screw, which has high screw speed,
output and plasticizing capacity.

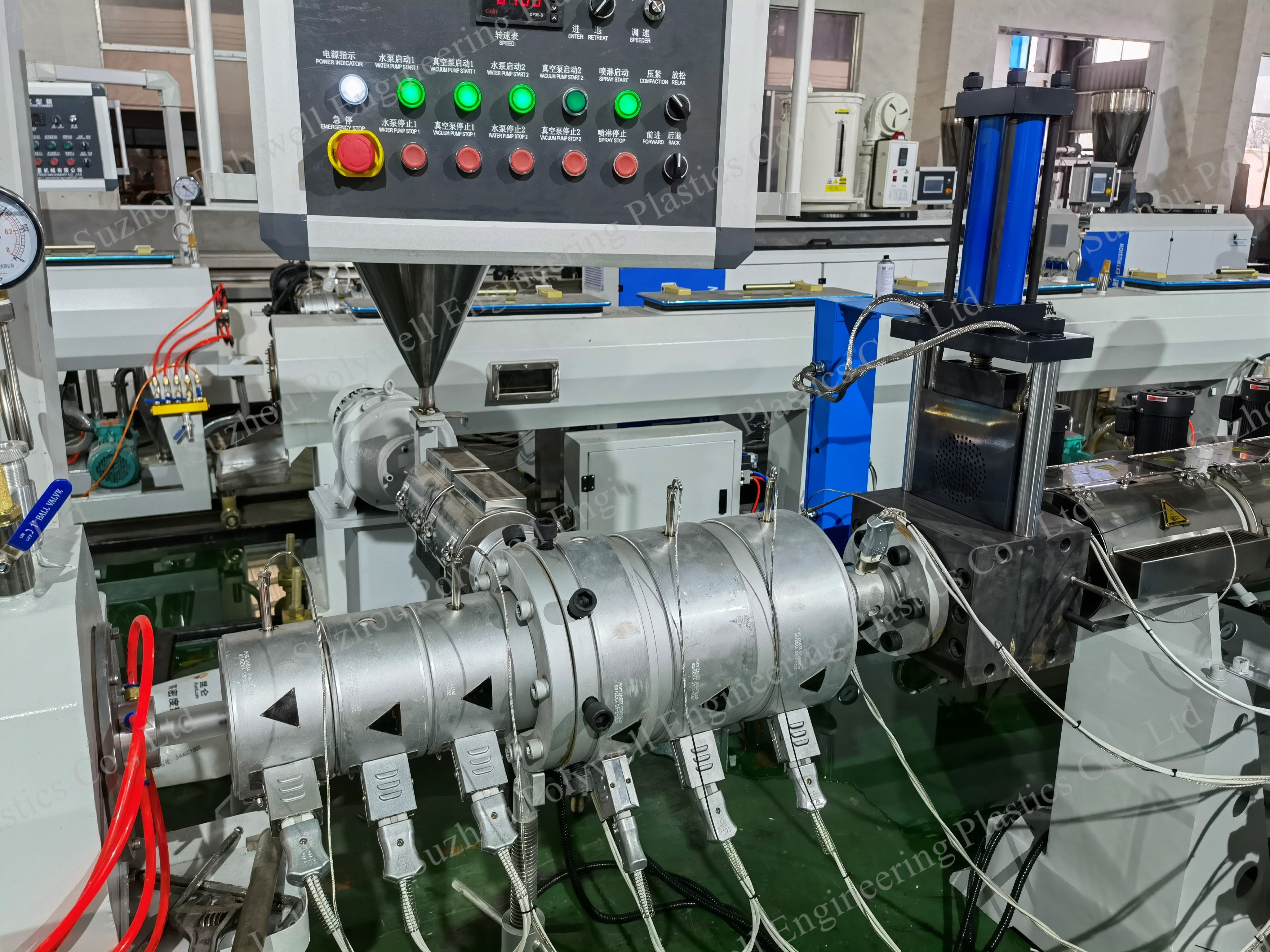

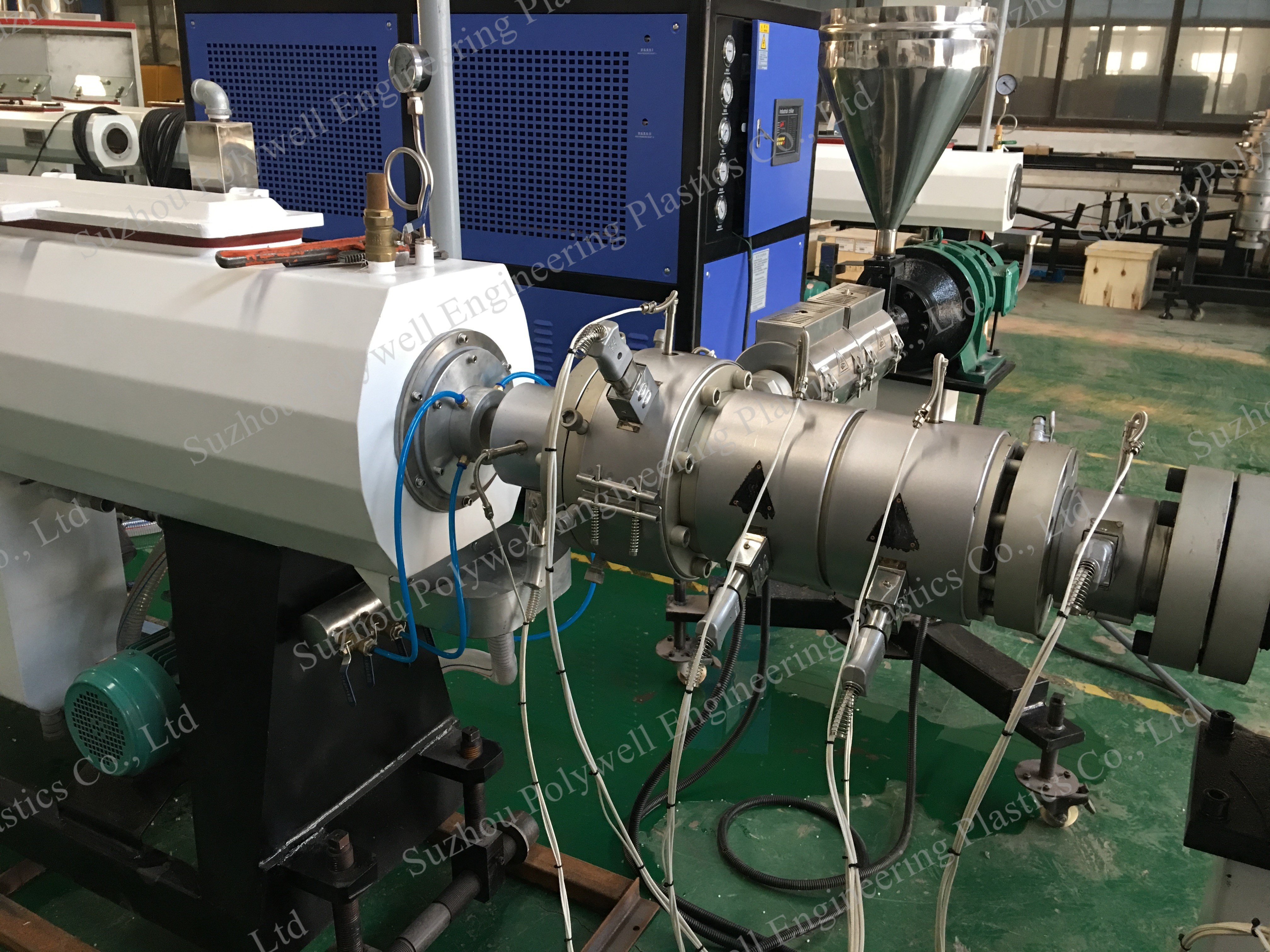

Extrusion Die: It adopts spiral split flow head, which has the
characteristics of uniform discharge, convenient adjustment, and
reduced extrusion welding marks.

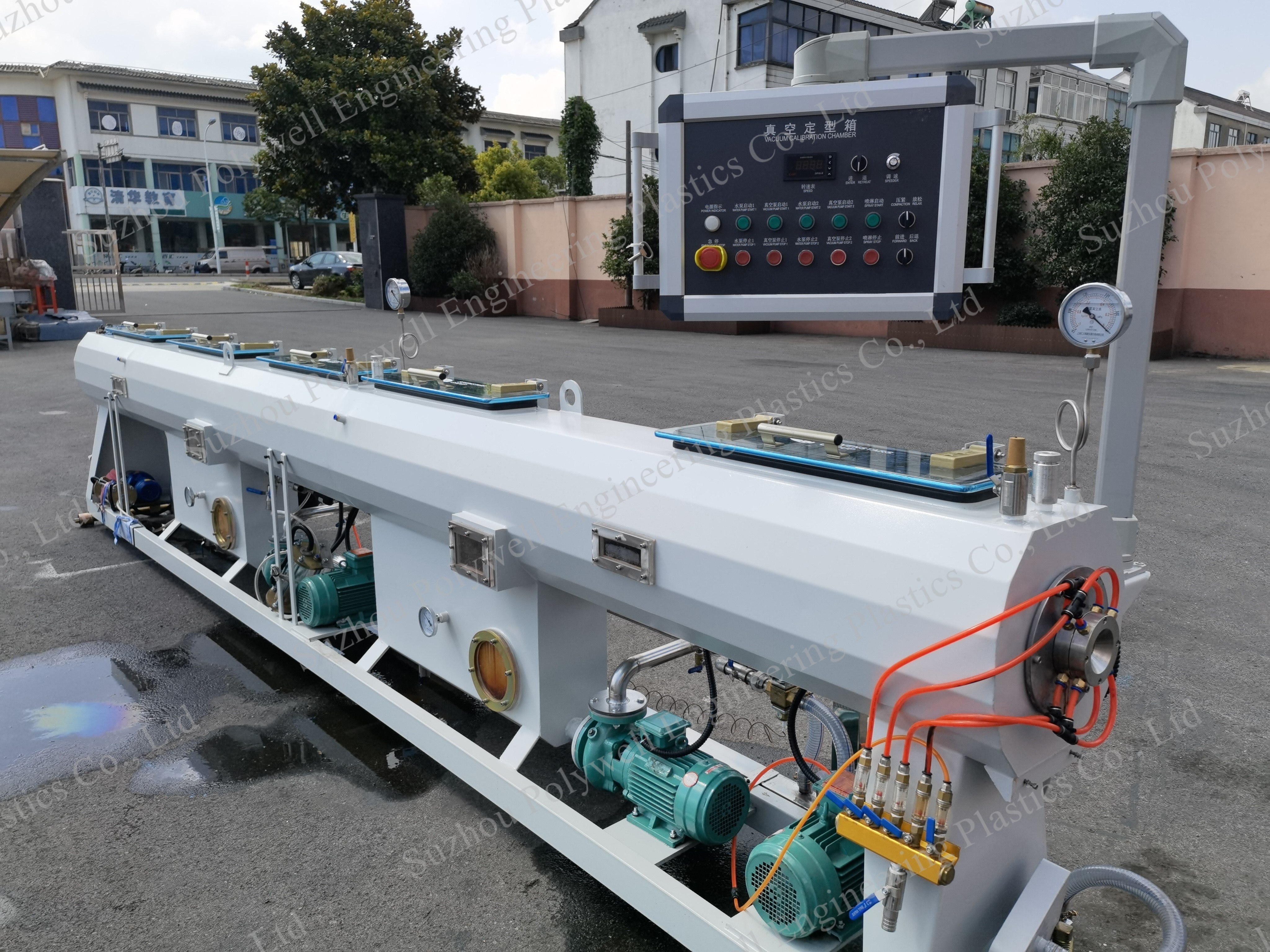

Vacuum Setting Device: vacuum spray box, spray cooling box or
cooling water tank, all parts in contact with water are made of
stainless steel.
Tractor: Use two-jaw belt-type or rubber crawler-type tractor to
meet the production requirements of different pipes.
Cutting Machine: chip-free rotary knife cutting.
Stacking Device: Automatic flap or roller stacking device,
small-diameter pipes can be equipped with double-station winders
according to customer requirements.
There are a variety of electrical control systems to choose from
(such as: PLC automatic control system). The production speed is
fast, stable, and the control is simple and easy to operate.
Main Technical Parameters
| Model /Paramenter | PPRG-63 | PPRG-110 |
| Pipe diameter(mm) | φ20-φ63 | φ75-φ110 |
| Production line speed | 0.5-8 | 0.3-2 |
| Power(kw) | 65 | 100 |
| Appearance Size(m) | 22×1×1.7 | 28×1.2×1.9 |
The services We Can Provide
1. We can provide factory building construction and renovation
plan, pipe laying plan in the factory building, circulating cooling
pool construction plan, etc.
2. Provide purchasing plans for raw materials, transformers, air
compressors, etc.
3. Provide specific formulas of relevant raw materials, excellent
raw material suppliers, raw material cost accounting, etc.
4. Provide install equipment, debug equipment, train employees, and
provide technical support all year round, etc.
5. We a nationwide plastics industry engineer alliance. If distance
permits, we can provide relevant talents to work in your company
all year round as technical support.
FAQ
Q1: What are your strengths?
A1: Suzhou Polywell adopts a unique combination of infrared and hot
air heating. The heating method is reasonable, efficient, with good
heating effect and stable performance, which makes the adhesion of
the reinforcement layer stronger. With mature technology and
experienced engineers.
Q2: How will the machine be assembled and debugged when it arrives
at the factory, and will the customer's employees be trained?
A2: We will debug the equipment before delivering it to the
customer's site. After the debugging is correct, it will be
disassembled and sent to the customer's factory. After shipment, we
will have experienced engineers on-site to install and assist in
debugging. After the on-site installation and commissioning are
completed, all-round training will be provided to the customer's
employees.
Q3: What do you do if there is a problem or failure with equipment
that requires guidance or replacement parts?
A3: If there is a problem, we will provide video technical
guidance, and if necessary, we will send engineers to the site to
solve the problem. If during the warranty period, parts need to be
replaced, we will send spare parts for free. For wearing parts, we
only charge the cost fee.
Q4: How long is the warranty period of the product?
A4: We will provide 1 year parts warranty and technical support.
Q5: Can I visit your factory in China?
A5: Yes, our factory is located in Kunshan, Suzhou, near Shanghai.
If customers need on-site visits, we can provide airport pick-up
for you.
Q6: Can you customize according to requirements?
A6: Suzhou Polywell is committed to differentiated and exclusive
customization according to the different needs of customers. Our
goal is to pursue efficiency and performance stability. We design
machines according to customers' products to meet customers' needs.
